Seasonic S12II-520 Bronze 520W ATX Power Supply PSU SS-520GB Tested

Seasonic S12II 520 Bronze 520W ATX Power Supply

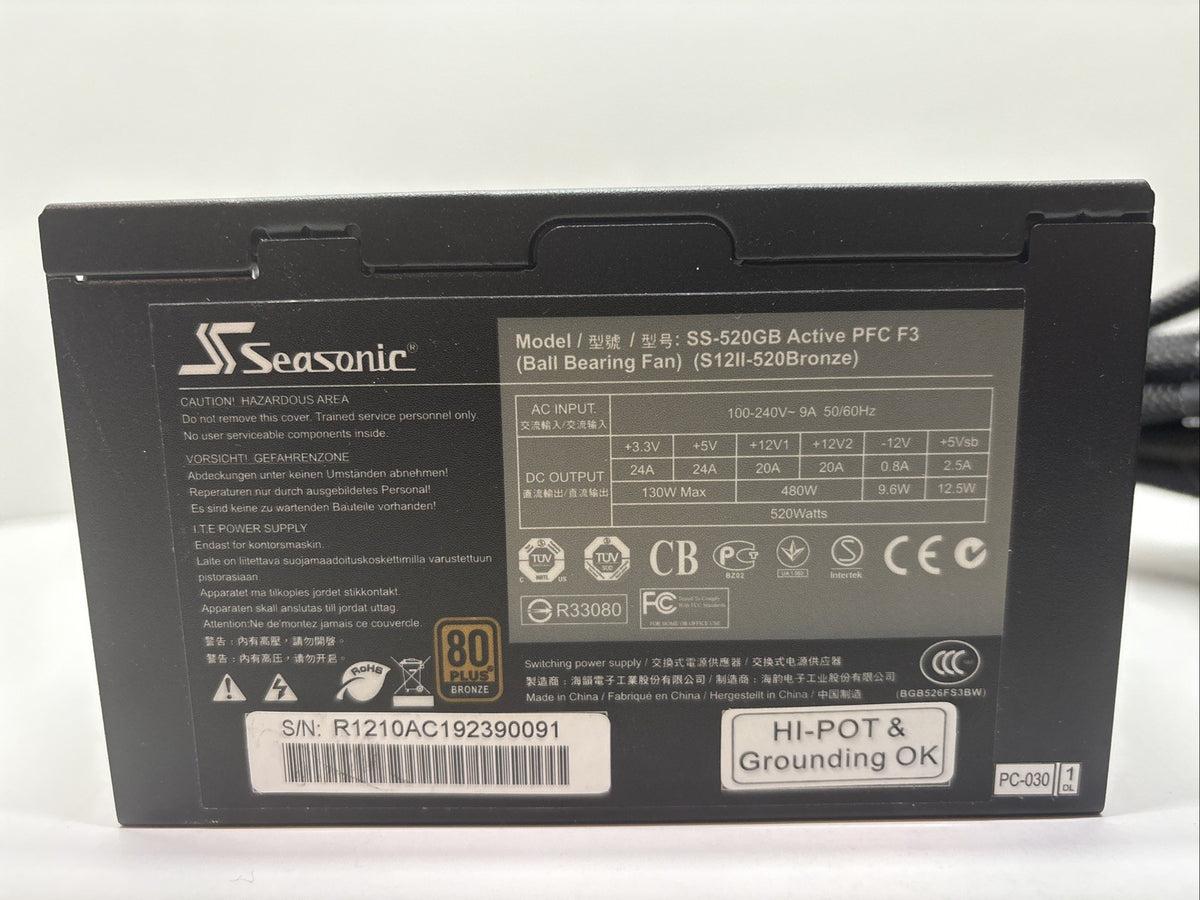

Model: SS-520GB Active PFC F3 (S12II 520 Bronze)

A well regarded unit from Seasonic, one of the most respected power supply manufacturers. Ideal for a budget gaming build, office PC, home server or retro build.

Specifications

Wattage: 520W continuous

Efficiency: 80 Plus Bronze certified

Form Factor: Standard ATX

Input: 100 to 240V AC, 50/60Hz, Active PFC

+12V Output: dual 20A rails, 480W combined

+3.3V / +5V: 24A each, 130W combined

Cooling: 120mm ball bearing fan

Protections: Over voltage, over power and short circuit protection

Rear power switch

Cables

Non modular design with black sleeved cables throughout

Includes 24 pin ATX motherboard, CPU power, PCIe graphics card, SATA and Molex connectors, as shown in the photos

What's Included

Seasonic S12II 520W power supply with attached cables, as pictured

Power cord is not included

Shipping with Care

Your power supply will be wrapped in protective padding and packed in a sturdy box with the cables neatly bundled to prevent any damage in transit. Orders are shipped promptly with tracking. Thank you for supporting a small business!
